اصلاح شاشة ايفون 6 المكسورة في خطوات سهلة وبسيطة

اصلاح شاشة ايفون 6 في 12 خطوة سهلة وبسيطة



المشكلة : انكسرت شاشة الايفون 6 وارغب في استبدالها

كثيرا ما يتعرض الايفون 6 للسقوط  وبسببه تتعرض الشاشة للكسر  ممايفقد الايفون جماليته ويصبح من الصعب استخدامه بتلك الحالة وعندها يلجأ المستخدم لمحلات الصيانة لصيانوة واستبدال الشاشة ويكلفه ذلك مبالغ عالية من هنا نقدم لكم طريقة لفك واستبدال شاشة الايفون بشاشة اخرى بنفسك دون الحاجة الى الذهاب لمحلات الصيانة .

الحل:

1- لتطبيق خطوات استبدال الشاشة يلزمك وجود الاتي :

أ-عدة خاصة لفك الايفون كما في الصورة

ب- شاشة ايفون 6 تناسب جهازك

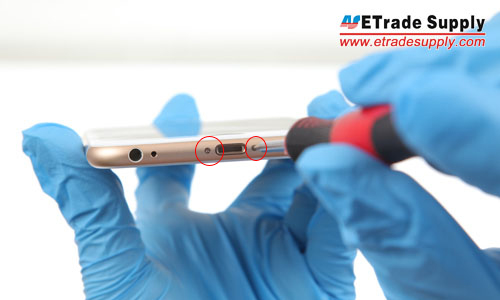

 2-قم بفك عدد 2 من المسامير الموجودة باسفل الجهاز



Undo 2 screws on the bottom of iPhone 6 plus





3- قم بفتح الجهاز برفق باستخدام الاداة المخصصة لذلك حتى يتم فصل الشاشة عن جسم الجهاز

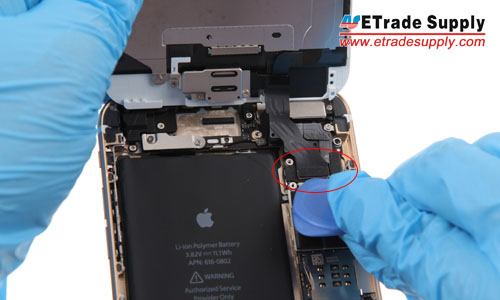

4 – بعد فصل الشاشة قم بفك عدد 5 مسامير كما هو واضح بالصورة حتى نفصل الكايبل من جسم الجهاز ونتمكن من العمل على الشاشة بحرية تامة ..

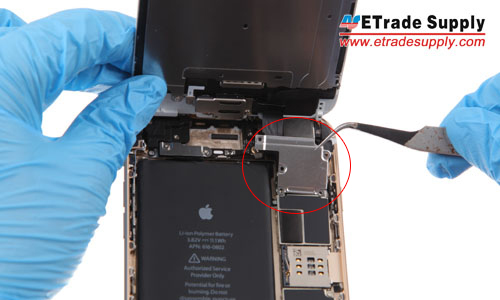

take the iPhone 6 plus metal cover out



5- ستظهر امامك كابلات الشاشة الموصلة بين الشاشة والايفون قم بفكها كما في الصورة مع حفظ اماكنها وترتيبها

Disconnect the digitizer flex cable connector, LCD display flex cable connector, front facing camera connector and home button flex cable connector







الخطوات القادمة راح تكون على الشاشة المكسورة سوف نقوم بفصل الاجزاءالاساسية  وهي زر الهوم في اسفل الشاشة وننقله الى الشاشة الجديدة ثم الكاميرا الامامية واسبيكر (سماعة) الهاتف .

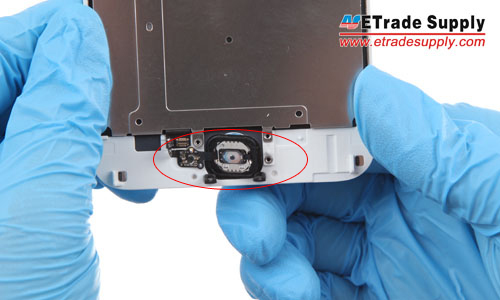

6-بعد فصل الشاشة عن جسم الايفون سنقوم بفك زر الهوم حتى ننقله للششاشة الجديدة  لذا قم بفك 3 مسامير الموضحة بالصورة واحفظ ترتيب كل قطعة

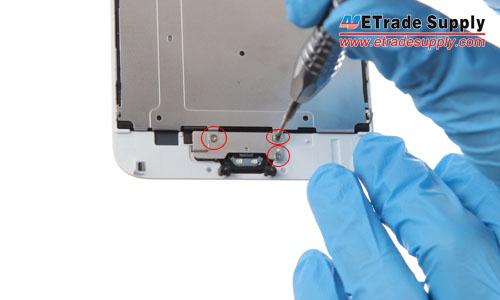

Undo the 3 screws holding the home button retaining bracket

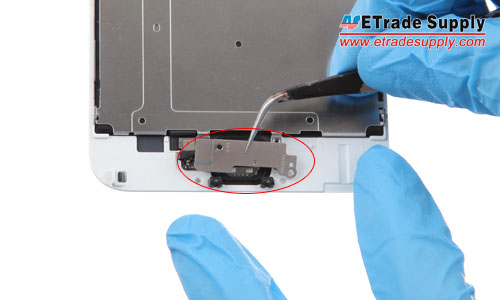

pick up iPhone 6 plus home button retaining bracket



7- قم بفصل الكابل الصغير الموصل بين زر الهوم والشاشة كما في الصوؤة



Pry up the iPhone 6 plus home button flex cable connector



remove the iPhone 6 plus home button

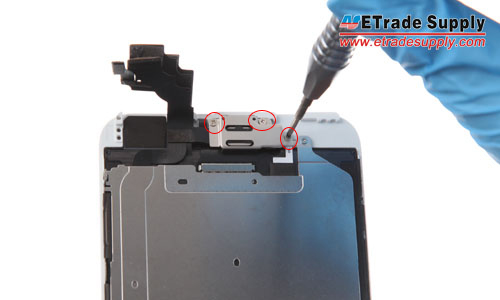

8- في اعلى الشاشة من الخلف نقوم بفك 3 مسامير المثبته للكاميرا الخلفية والاسبيكر (السماعة)

Undo the 3 screws that holding the metal cover on the iPhone 6 plus ear speaker

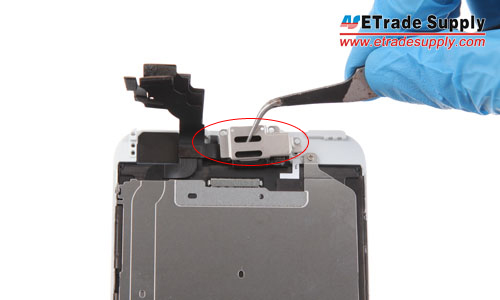

9- نقوم باخراج الكاميرا الخلفية ومكبر الصوت كما في الصورة



Take out the iPhone 6 plus retaining bracket



https://ziontechapple.files.wordpress.com/2014/12/4unurdvtrionxerm.jpg







10- في هذه الخطوة سوف نقوم بفك اللوحة المعدنية لشاشة lcd للايفون وطبعا هذه اللوحة تحتوي على خاصية اللمس وهي المكون الرئيس لشاشة الايفون .. نبدأ بفك المسمار بالاعلى  كما في الصورة :

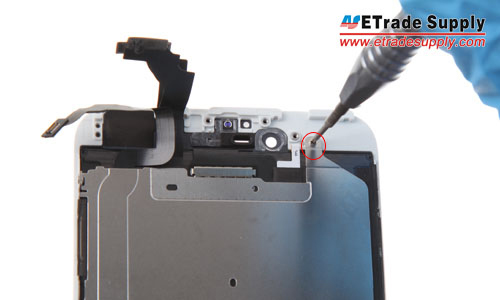

Undo the 7 screws that locking the iPhone 6 plus LCD metal plate

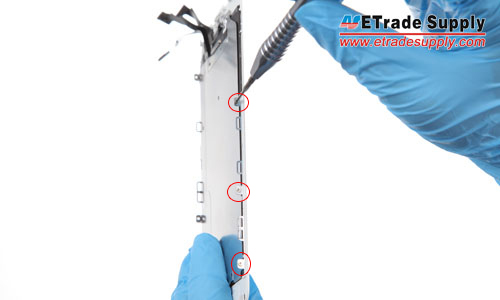

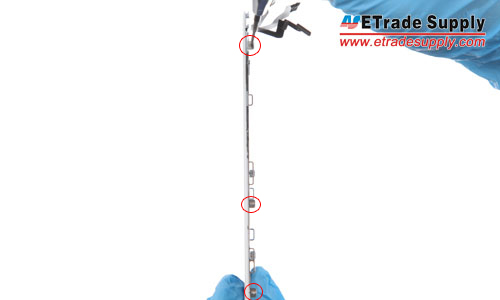

ثم نجد عدد 6مسمامير في الجوانب في كل جانب 3 مسامير نقوم بفكها ..



Undo the 7 screws that locking the iPhone 6 plus LCD metal plate



Undo the 7 screws that locking the iPhone 6 plus LCD metal plate



11- نفك الكابل او الكنكتور الخلفي لشاشة lcd



Pry up the iPhone 6 plus LCD back plate connector

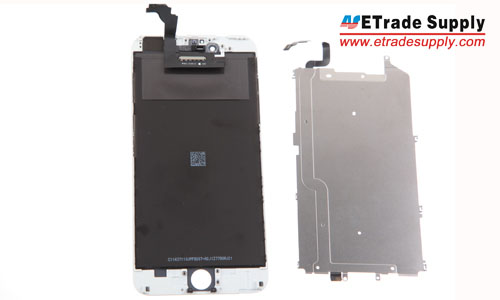

12-  نقوم بتركيب شاشة lcd المعدنية على الشاشة الجديدة  ومن ثم نركبها للايفون .. ,وانتهى كل شئ…

Replace your broken iPhone 6 plus screen with the new one







تحياتي …
